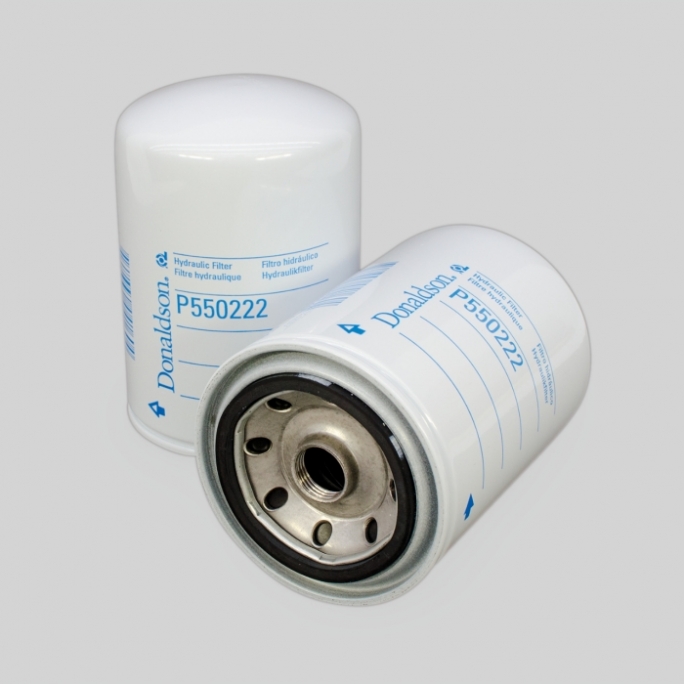

旋裝式液壓油過濾器, HYDRAULIC FILTER, SPIN-ON

Outer Diameter	93 mm (3.66 inch)
Thread Size	3/4-16 UN
Length	136.2 mm (5.36 inch)
Gasket OD	72 mm (2.83 inch)
Gasket ID	62 mm (2.44 inch)
Efficiency Beta 2	17 micron
Efficiency Test Std	SAE J1858
Anti-Drainback Valve	Yes
Bypass Valve	Yes
Bypass Valve Setting LR	0.5 bar (7 psi)
Bypass Valve Setting HR	0.7 bar (10 psi)
Style	Spin-On
Media Type	Cellulose
Primary Application	ALLISON 25010543
