| P502051 |
 |
| |
|
|
|
|
| 產品描述 |

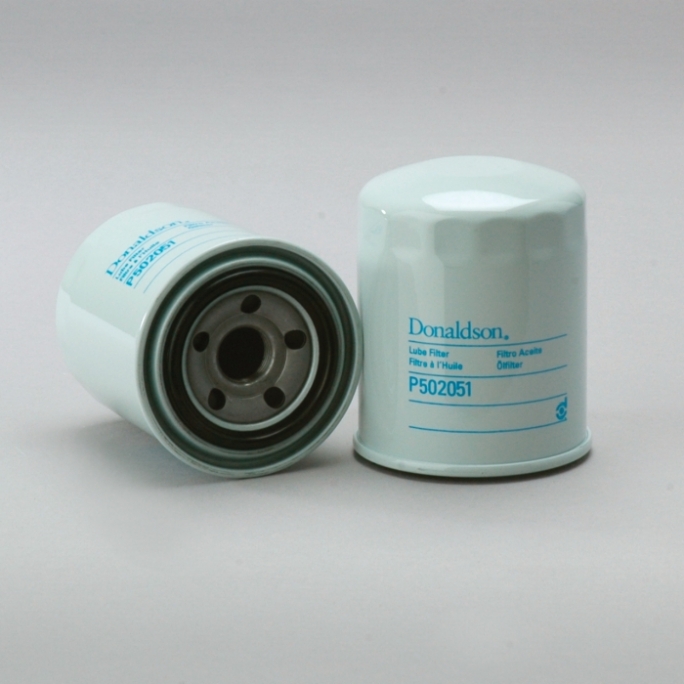

旋裝式全流型機油過濾器, LUBE FILTER, SPIN-ON FULL FLOW
|
|
| 圖示與尺寸 |
|
Outer Diameter |
83.9 mm (3.30 inch) |
|
Thread Size |
M20 x 1.5 |
|
Length |
100 mm (3.94 inch) |
|
Gasket OD |
63 mm (2.48 inch) |
|
Gasket ID |
46 mm (1.81 inch) |
|
Efficiency 99% |
37 micron |
|
Efficiency Test Std |
JIS D 1611 |
|
Anti-Drainback Valve |
Yes |
|
Bypass Valve |
Yes |
|
Bypass Valve Setting LR |
0.8 bar (12 psi) |
|
Bypass Valve Setting HR |
1 bar (15 psi) |
|
Media Type |
Cellulose |
|
Collapse Burst |
6.9 bar (100 psi) |
|
Type |
Full-Flow |
|
Style |
Spin-On |
|
Primary Application |
HONDA 15400PH1014 |
|
|
| 交叉參考 |
| ALCOA MARINE-H0523 ,HO523 ; AMERICAN MOTORS CORPORATION-H0523 ,HO523 ,OC12060 ,SFO3802 ; BOLENS-1863399 ; CARQUEST-85344 ; CARRIER TRANSICOLD-945539 ,251503800 ,305032700 ; CASE-CASE IH-200073A1 ,C532 ; CATERPILLAR-1200664 ,MD162326 ; COOPERS-Z920 ; CROSLAND-2071 ; DANIEL DOYEN-DOF3402 ; ECHLIN-OF51 ; EXMAN-OC12060 ,SFO3802 ; FIAAM-FT4908 ; FLEETGUARD-LF16103 ,LF16157 ,LF3776 ,LF3812 ; FRAM-PH3807A ; FSA-FO1083 ,FO1084 ; GEHL-121433 ,5.48941E+11 ; HONDA-15400PC6004 ,15400PE6003 ,15400PH1000 ,15400PH1003 ,15400PH1004 ,15400PH1014 ,15400PK1003 ; INGERSOLL RAND-85426856 ; JOHN DEERE-M801002 ; KNECHT-OC115 ; KOMATSU-A3EB1531550 ; KUBOTA-1627132090 ,1627132092 ; LUBER FINER-PH2805 ; MITSUBISHI-MD162326 ; NAPA-1344 ,PH3807A ; NIPPON-J1314010 ; NISSAN-UD TRUCKS-1520831L00 ; RYCO-Z193 ; SAKURA-C1607 ,C16071 ,C1608 ,C8807 ; SDMO-330560546 ;SF-FILTER-SP4014 ; SURE FILTER-SFO3155 ,SFO3802 ; TAKEUCHI-11900535100 ; THERMO KING-115712 ,P305032700 ; UFI-2324300 ,92324340 ,92324340 ; UNION CITY BODY-C532 ; VIC-C406 ,C805 ; VMC-LF502051 ; VOLVO-7417534 ; WIX-51344 |
|
|
|
|
|
|
|
