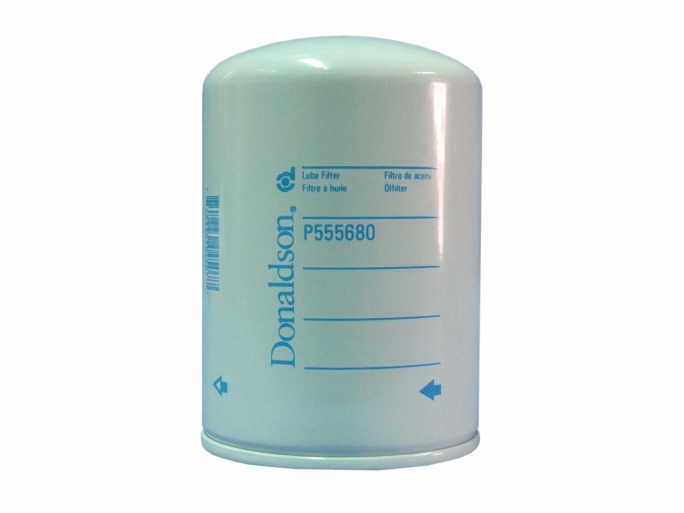

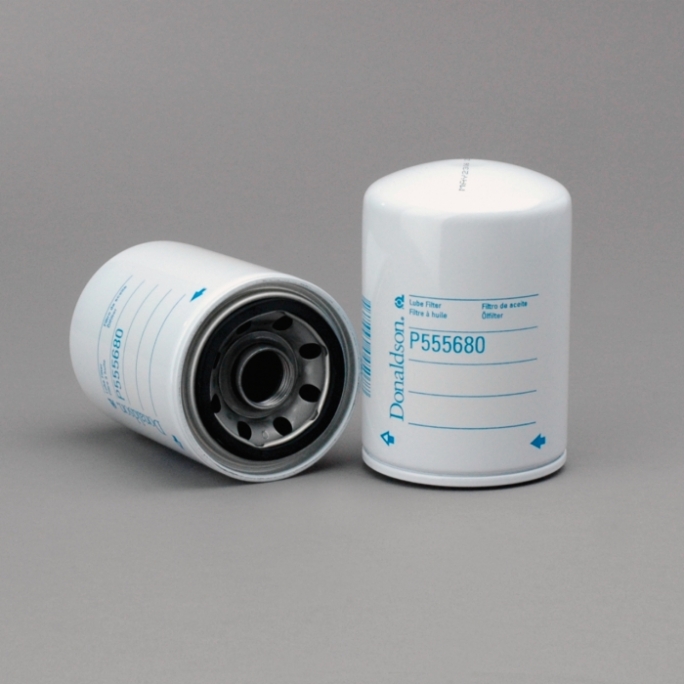

旋裝式全流型機油過濾器, LUBE FILTER, SPIN-ON FULL FLOW

Outer Diameter	93 mm (3.66 inch)
Thread Size	1-12 UN
Length	136 mm (5.35 inch)
Gasket OD	71 mm (2.80 inch)
Gasket ID	61 mm (2.40 inch)
Efficiency 99%	40 micron
Efficiency Test Std	ISO 4548-12
Bypass Valve	Yes
Bypass Valve Setting LR	1.2 bar (17 psi)
Bypass Valve Setting HR	1.6 bar (23 psi)
Media Type	Cellulose
Collapse Burst	6.9 bar (100 psi)
Type	Full-Flow
Style	Spin-On
Primary Application	CATERPILLAR 9N5680
