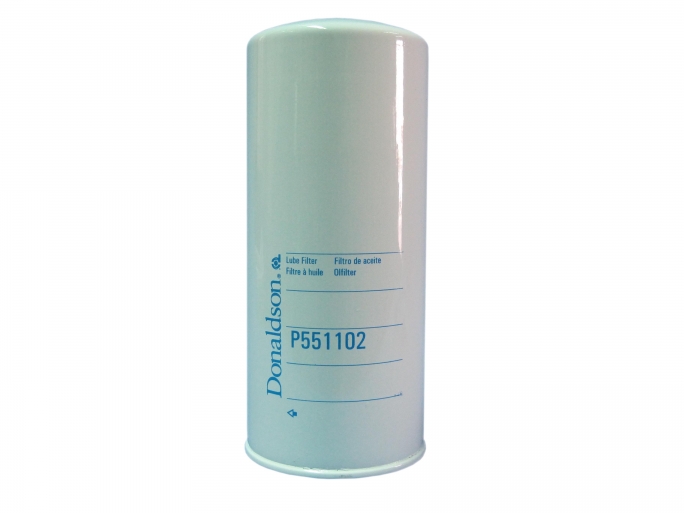

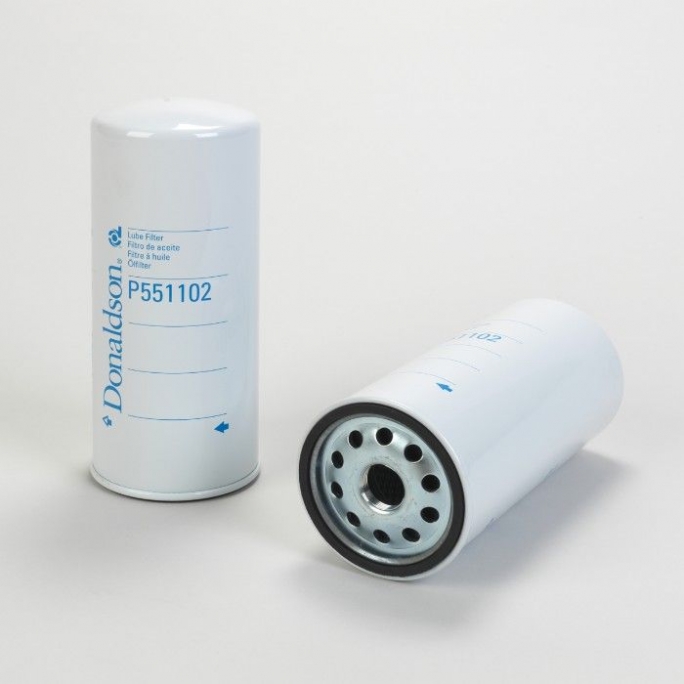

旋裝式全流型機油過濾器, LUBE FILTER, SPIN-ON FULL FLOW

Outer Diameter	110 mm (4.33 inch)
Thread Size	1 1/8-16 UN
Length	256 mm (10.08 inch)
Gasket OD	102 mm (4.02 inch)
Gasket ID	92 mm (3.62 inch)
Efficiency 50%	20 micron
Efficiency Test Std	SAE J1858
Anti-Drainback Valve	Yes
Bypass Valve	Yes
Bypass Valve Setting LR	2.5 bar (36 psi)
Media Type	Cellulose
Collapse Burst	4 bar (58 psi)
Type	Full-Flow
Style	Spin-On
Primary Application	DEUTZ 1174420
