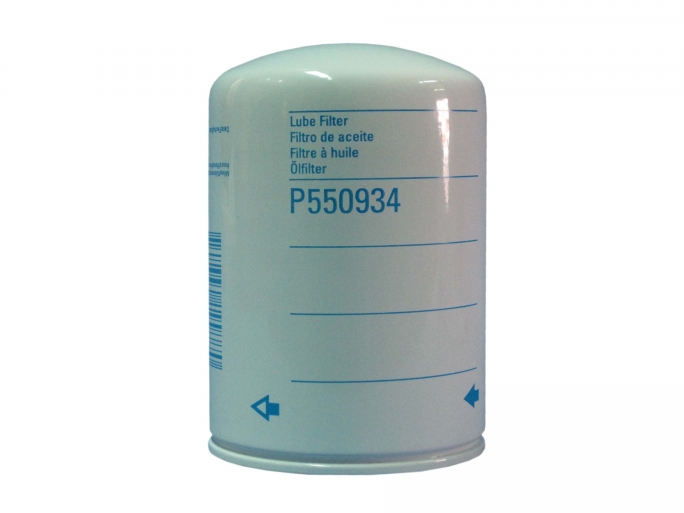

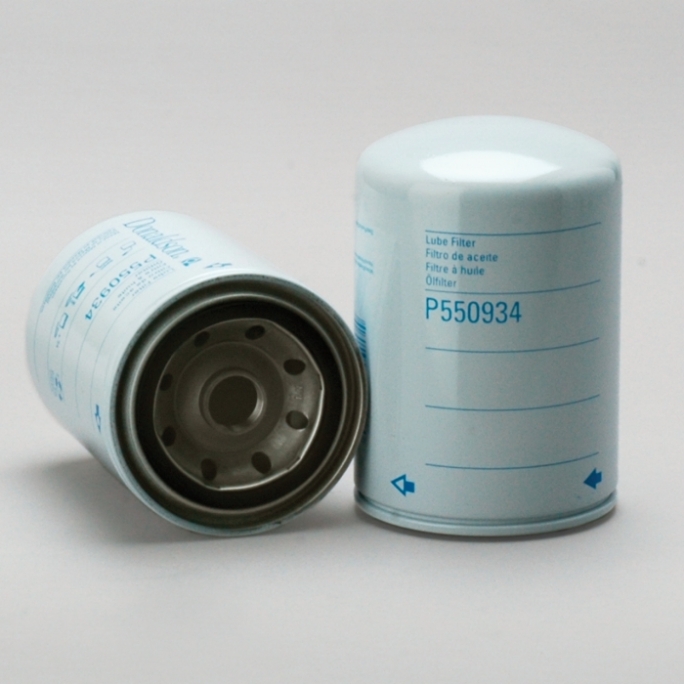

旋裝式全流型機油過濾器, LUBE FILTER, SPIN-ON FULL FLOW

Outer Diameter	93 mm (3.66 inch)
Thread Size	M20 x 1.5
Length	136 mm (5.35 inch)
Gasket OD	72 mm (2.83 inch)
Gasket ID	62 mm (2.44 inch)
Efficiency 99%	40 micron
Efficiency Test Std	ISO 16889
Anti-Drainback Valve	Yes
Bypass Valve	Yes
Bypass Valve Setting LR	0.55 bar (8 psi)
Bypass Valve Setting HR	0.75 bar (11 psi)
Media Type	Cellulose
Type	Full-Flow
Style	Spin-On
Primary Application	CATERPILLAR 1N4402H
