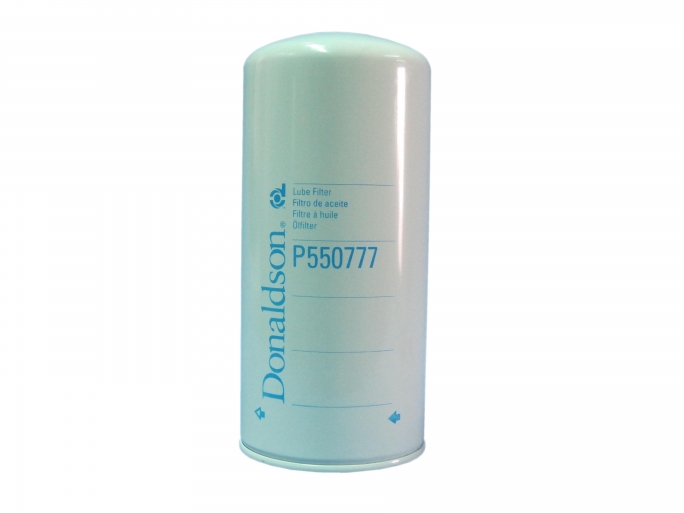

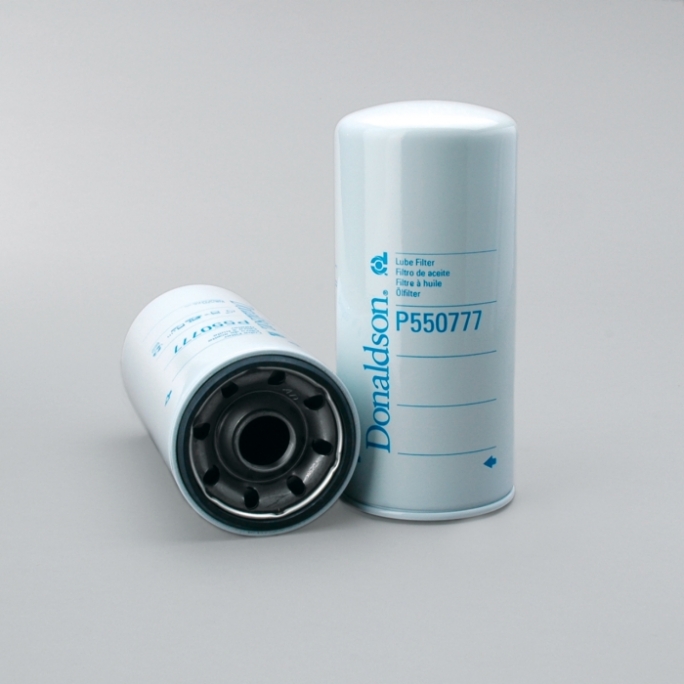

旋裝式旁通型機油過濾器, LUBE FILTER, SPIN-ON BYPASS

Outer Diameter	118 mm (4.65 inch)
Thread Size	1 3/8-16 UN
Length	260 mm (10.24 inch)
Gasket OD	110 mm (4.33 inch)
Gasket ID	98 mm (3.86 inch)
Efficiency 50%	9 micron
Efficiency 99%	22 micron
Efficiency Test Std	SAE J1858
Media Type	Cellulose
Collapse Burst	10.3 bar (149 psi)
Type	Bypass
Style	Spin-On
Primary Application	CUMMINS 330432
