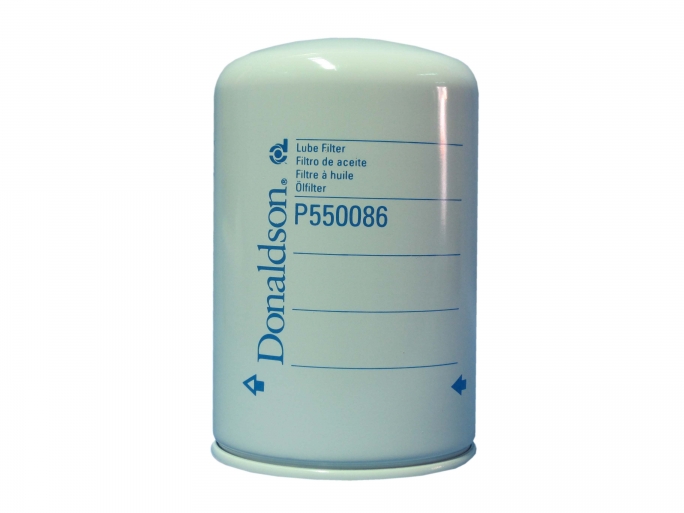

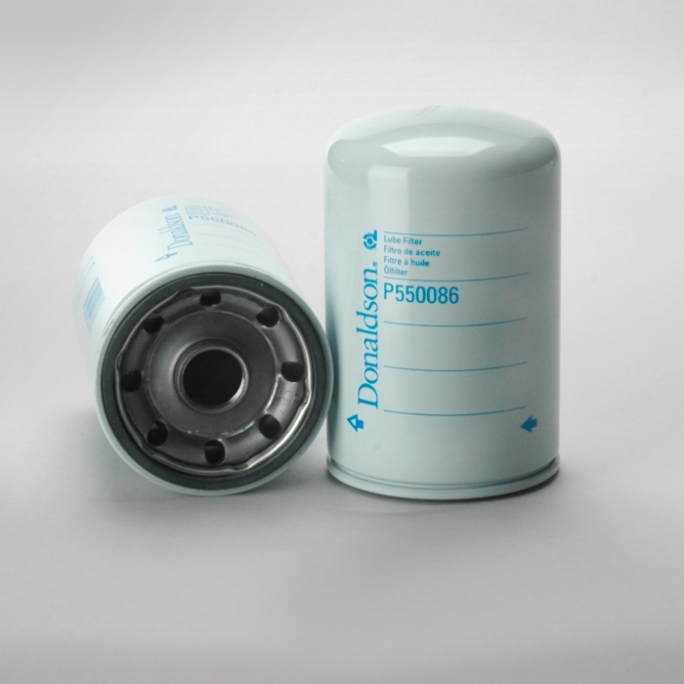

旋裝式全流型機油過濾器, LUBE FILTER, SPIN-ON FULL FLOW

Outer Diameter	108 mm (4.25 inch)
Thread Size	1 1/8-16 UN
Length	167 mm (6.57 inch)
Gasket OD	99 mm (3.90 inch)
Gasket ID	90 mm (3.54 inch)
Efficiency 50%	20 micron
Efficiency Test Std	ISO 4572
Bypass Valve	Yes
Bypass Valve Setting LR	1.8 bar (26 psi)
Bypass Valve Setting HR	2.1 bar (30 psi)
Media Type	Cellulose
Collapse Burst	10 bar (145 psi)
Type	Full-Flow
Style	Spin-On
Primary Application	KOMATSU 6136515120
