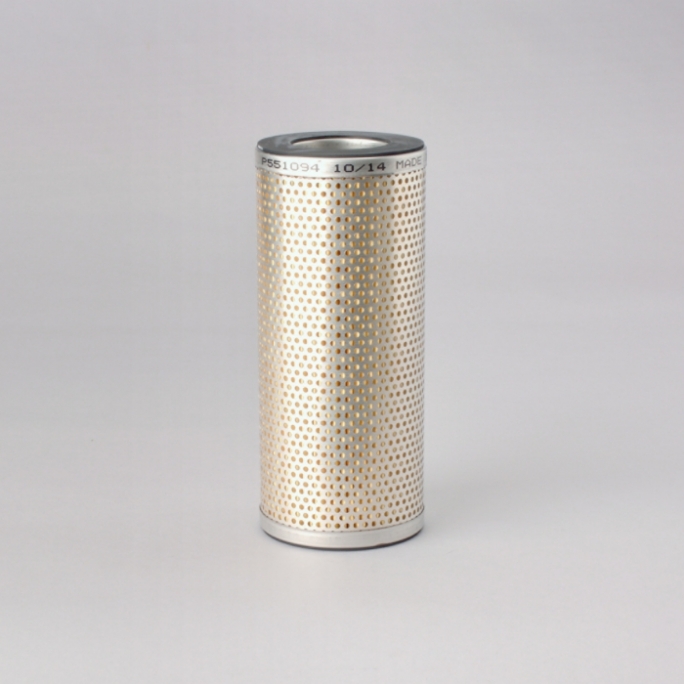

P551094

原廠零件號
P551094
製造商
唐納森/Donaldson
產品描述
液壓油濾清器HYDRAULIC FILTER, CARTRIDGE
相關型號
P164200  Synthetic, Efficiency Beta 1000: 13 micron
P165238  Synthetic, Efficiency Beta 1000: 7 micron
P559740  Efficiency Beta 2: 20 micron, Efficiency Beta 20: 35 micron, Efficiency Beta 1000: 39 micron
圖示與尺寸
Outer Diameter 101.6 mm (4.00 inch)
Inner Diameter 58.4 mm (2.30 inch)
Length 232 mm (9.13 inch)
Gasket OD 98 mm (3.86 inch)
Gasket ID 58.4 mm (2.30 inch)
Overall Length 235 mm (9.25 inch)
Efficiency Beta 2 9 micron
Efficiency Beta 1000 26 micron
Collapse Burst 10.34 bar (150 psi)
Style Cartridge
Media Type Cellulose
