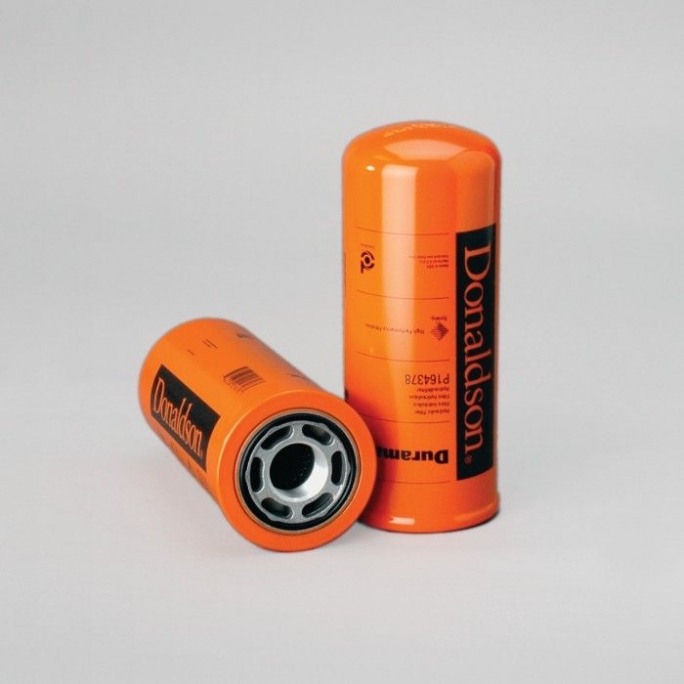

P164378

更多資訊

原廠零件號
P164378
製造商
唐納森/Donaldson
產品描述
旋裝式液壓油濾清器, HYDRAULIC FILTER, SPIN-ON DURAMAX
相關型號
P163323  Cellulose
P163324  Cellulose, Efficiency Beta 2: 7 micron, Efficiency Beta 200: 19 micron, Efficiency Beta 1000: 23micron
P163555  Synthetic, Efficiency Beta 1000: 24 micron
P163558  Synthetic, Efficiency Beta 2: 14 micron, Efficiency Beta 1000: 50 micron
P163567  Synthetic, Efficiency Beta 2: 7 micron, Efficiency Beta 1000: 23 micron
P164056  Synthetic, Efficiency Beta 1000: 13 micron
P164059  Synthetic, Efficiency Beta 1000: 22 micron
P164384  Synthetic, Efficiency Beta: 2 7 micron, Efficiency Beta 1000: 23 micron
P165185  Synthetic, Efficiency Beta 1000: 4 micron
P165332  Synteq XP,  Efficiency Beta 2: 4 micron, Efficiency Beta 1000: 6 micron
P165338  Synthetic, Efficiency Beta 2: 14 micron, Efficiency Beta 1000: 50 micron
P170950  Synthetic, Efficiency Beta 1000: 9 micron, JOHN DEERE AH128449
P176566  Synthetic, Efficiency Beta 1000: 9 micron
P177047  Synthetic, Efficiency Beta 1000: 14 micron, JOHN DEERE T175002
P560584  Cellulose, Water Absorbent, Efficiency Beta 2 10 micron
P573301  Wire Mesh, Efficiency Beta 2: 150 micron

圖示與尺寸
Outer Diameter 97 mm (3.82 inch)
Thread Size 1 3/8-12 UN
Length 239.78 mm (9.44 inch)
Gasket OD 70 mm (2.76 inch)
Gasket ID 63 mm (2.48 inch)
Efficiency Beta 2 4 micron
Efficiency Beta 1000 11 micron
Efficiency Test Std ISO 16889
Style Spin-On
Series HMK04/24
Brand Duramax®
Media Type Synteq XP
