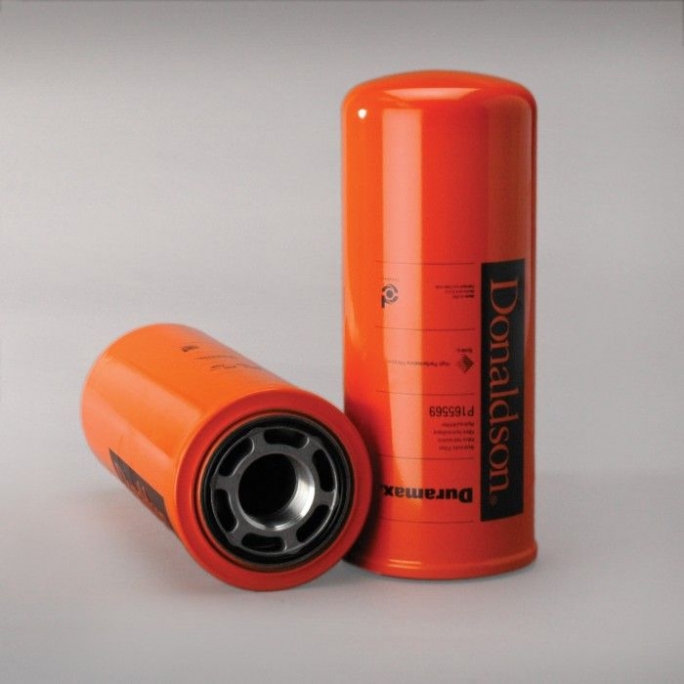

P165569

更多資訊

原廠零件號
P165569
製造商
唐納森/Donaldson
產品描述
旋裝式液壓油濾清器, HYDRAULIC FILTER, SPIN-ON DURAMAX
相關型號
P165659  Synteq XP, Efficiency Beta 2: 4 micron, Efficiency Beta 1000: 11 micron
P165672  Synthetic, Efficiency Beta 2: 14 micron, Efficiency Beta 1000: 50 micron
P165675  Synthetic, Efficiency Beta 1000: 5 micron
P165705  Cellulose,  Efficiency Beta 2: 7 micron, Efficiency Beta 1000: 23 micron
P170906  Synthetic, Efficiency Beta 1000: 7 micron
P171273  Synthetic, Efficiency Beta 1000: 7 micron
P171274  Synthetic, Efficiency Beta 1000: 6 micron
P171275  Synthetic, Efficiency Beta 1000: 11 micron
P171276  Synthetic, Efficiency Beta 1000: 23 micron
P173521  Synthetic, Efficiency Beta 1000: 23 micron
P173943  Wire Mesh, Efficiency Beta 2: 150 micron
P176567  Synteq XP, Efficiency Beta 2: 4 micron, Efficiency Beta 1000: 11 micron
P179075  Cellulose, Water Absorbent, Efficiency Beta 2: 10 micron
P179518  Synthetic, Efficiency Beta 1000: 9 micron
P561013  Synthetic, Efficiency Beta 1000: 9 micron

圖示與尺寸
Outer Diameter 121 mm (4.76 inch)
Thread Size 1 3/4-12 UN
Length 295.4 mm (11.63 inch)
Gasket OD 86 mm (3.39 inch)
Gasket ID 79 mm (3.11 inch)
Efficiency Beta 2 7 micron
Efficiency Beta 200 18 micron
Efficiency Beta 1000 23 micron
Style Spin-On
Series HMK05/25
Brand Duramax®
Media Type Synthetic
