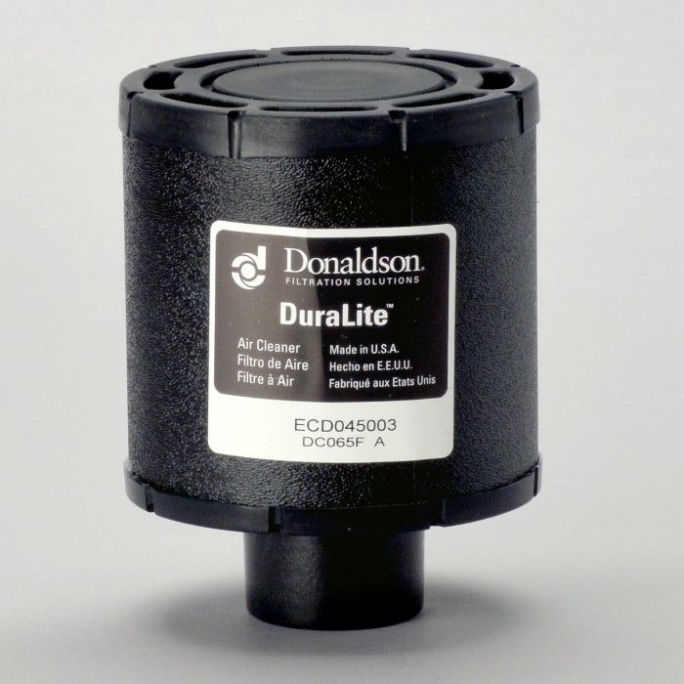

D045003

原廠零件號
D045003
製造商
唐納森/Donaldson
產品描述
DURALITE 空氣過濾器, AIR FILTER, PRIMARY DURALITE

圖示與尺寸
Outlet Diameter 38.1 mm (1.50 inch)
Body Diameter Maximum 114.3 mm (4.50 inch)
Body Length 114.3 mm (4.50 inch)
Efficiency Test Std ISO 5011
Rated Flow LR 1.3 m³/min (46 cfm)
Rated Flow MR 1.6 m³/min (57 cfm)
Rated Flow HR 1.8 m³/min (64 cfm)
Restriction LR 102 mm H2O (4.02 inch H2O)
Restriction MR 152 mm H2O (5.98 inch H2O)
Restriction HR 203 mm H2O (7.99 inch H2O)
Family ECD
Primary Application INGERSOLL RAND 8524575
Type Primary
Style Round
Brand DuraLite™
Media Type Cellulose
